Titanium Spiral Pipe
- Material: GR1 GR2
- Outer Diameter: 4-168mm
- Length: MAX18000mm
- Standard: ASTM B337 ASTM B338 B861 B862
- Technique: Seamless
- Wall Thickness: 0.5—10mm

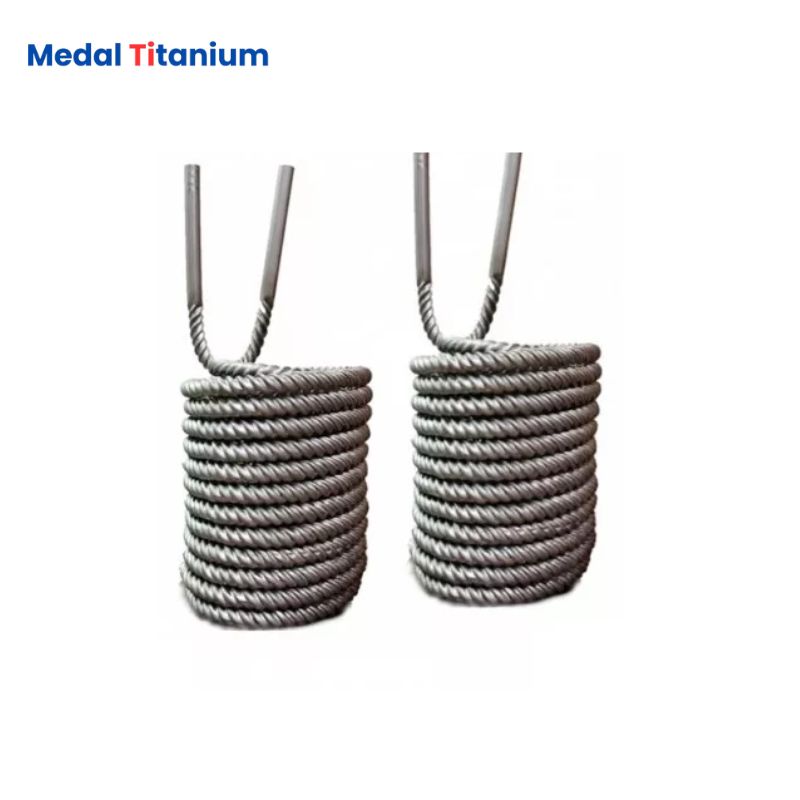

TITANIUM HEATING/COOLING COIL (TITANIUM SPIRAL PIPE)
Titanium Heating Coil and Titanium Cooling Coil are made out of titanium pipes or tubes with dia 8mm – 65mm as per ASTM B 337/338, Gr.1 or Gr2, applied to chemical, electroplating and metal finishing industries to heat or cool the chemical bath.
PRODUCT PARAMETER
| Material | GR1 GR2 |
| Outer Diameter | 4-168mm |
| Length | MAX18000mm |
| Standard | ASTM B337 ASTM B338 B861 B862 |
| Technique | Seamless |
| Wall Thickness | 0.5—10mm |
| Inside Diameter | 0.5—100mm |
| Surface | polished |
| Processing | seamless and weld |
| Technique | cold rolling |
| Dimension | as customer available |
Features of Titanium Spiral Tube
- High heat transfer efficiencyThe diameter, wall thickness, and length of the titanium corrugated tube are the same. The thermal efficiency is 1.3-2.6 times that of a straight titanium tube.
- Strong corrosion resistanceThe heat transfer tube-Gr1 titanium corrugated tube, made according to standard GB/T3625-1995, are 4 times 43 bar high pressure test and precise halogen leaking test in the Production. And 100000 times 4.5 bar fatigue test to make sure no leakage.
- Descaling ability4/6 head titanium corrugated tube is without welds. It can greatly reduce the leakage. It also can be turbulent flowing, which reduce the rate of scale formation. So as to prolong service life, and reduce maintenance costs.
Chemical Composition of Titanium Coil Spiral Tube
| Grade | N | C | H | Fe | O | Ti |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.2 | 0.18 | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | bal |
Mechanical Properties of Titanium Coil Spiral Tube
| Grade | Tensile strength (min) | Yield strength (min） | Elongation (%) | ||
| ksi | Mpa | ksi | Mpa | ||
| Gr1 | 35 | 240 | 25 | 170 | 24 |
| Gr2 | 50 | 345 | 40 | 275 | 20 |
Application of Titanium Spiral Tube
Titanium Spiral Tube is widely used for mariculture, seawater heat transfer, saline heat transfer, the chemical industry, the food Industry, Metallurgy, refrigeration, the light industry, the plating industry, aluminum oxidation tank, salt manufacturing, paper making, ultrasonic, telecommunication and central heating etc.
Usage of Titanium Spiral Tube
Water tank, boiler, heat exchanger unit, absorption type refrigerator, turbo refrigerator and screw refrigerators; distillation facility with multiple effects etc.
Titanium Spiral Tube Supplier
Lasting is a leading manufacturer and supplier of Titanium Pipe/Tube, in a wide range of sizes grades and specifications. We also supply Titanium Powder, Titanium Round Bar, Titanium Sheet, Titanium Wire, Titanium Drawing and other titanium products.
